Advantages of 5-axis CNC machining Jul 06, 2022

Compared with 3 axis CNC machining equipment, 5 axis CNC machine tools have the following advantages.



1:Maintain the best cutting condition of the tool and improve the cutting conditions

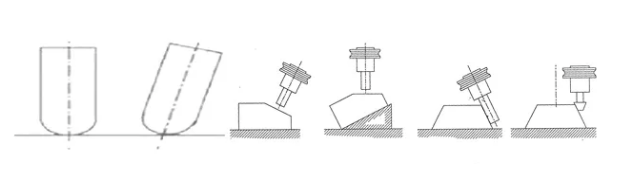

As shown in the diagram, the cutting condition gradually deteriorates as the cutting tool moves towards the tip or edge of the workpiece. To maintain optimum cutting conditions, the table needs to be rotated. For complete machining of irregular flat surfaces, the table also needs to be rotated several times in different directions.

As can be seen in the figure, the tool tip position diagram shows that deflecting the tool on a 5-axis machine avoids a zero cutting speed at the centre of the ball end mill and gives better surface quality.

2. Effectively avoid tool interference

3. Reduce the number of clamping, a clamping to complete five-sided machining

4. Improve machining quality and efficiency

5.Shorten the production process chain and simplify production management

6. Shorten the development cycle of new products



Five-axis CNC machine tools through the spindle head offset for sidewall processing, without the need for multiple parts clamping, effectively reducing the positioning error, improve the machining accuracy, and make the production chain shortened. In the aerospace, automotive and other fields, with high flexibility, high precision, high integration and complete processing capabilities can be a good solution to the complex parts processing accuracy and cycle time problems in the process of new product development, greatly shorten the development cycle and improve the success rate of new products.



Advantage of GT-PROTO 5-axis CNC machining services




  • We have many years experience in 5-axis CNC machining.
  • We have advanced process and inspection equipment and regular investment in leading-edge equipment.
  • We can participate in and assist customers from the initial product design and development to the entire stage of mold making and product production and delivery.
  • We provide a perfect project Management System.
  • We provide innovative solutions based on varied industry experience.
  • We guarantee our molds for the life of your project.
